PA66 for airbags

Download in PDF

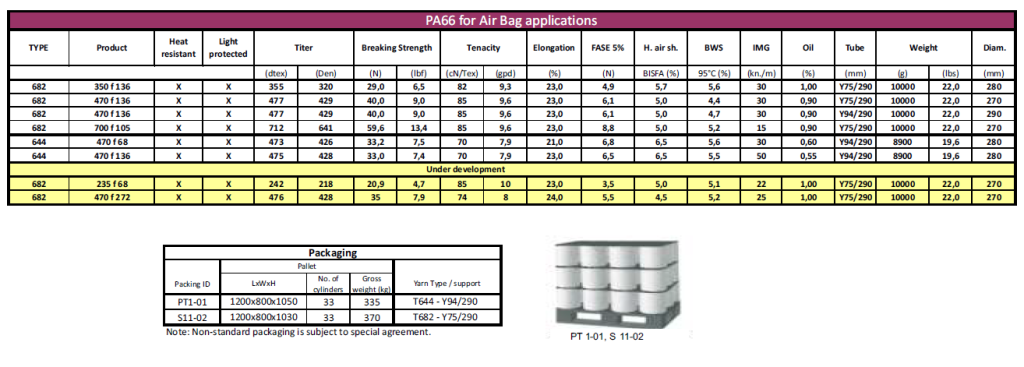

PA66 for Air Bag applications
TYPE Product Heat resistant Light protected Titer Breaking Strength Tenacity Elongation FASE 5% H. air sh. H. air sh. BWS IMG Oil Tube Weight  Diam.
  (dtex) (Den) (N) (lbf) (cN/Tex) (gpd) (%) (N) Nexis (%) BISFA (%) 95°C (%) (kn./m) (%) (mm) (g) (lbs) (mm)
682 700 f 105 X X 705 635 59,6 13,4 84,5 9,6 23,0 8,8 7,0 5,0 5,2 15 0,90 Y75/290 10000 22,0 270
682 470 f 136 X X 475 428 40,0 9,0 84,5 9,6 23,0 6,1 7,0 5,0 5,2 30 0,90 Y75/290 10000 22,0 270
682 350 f 136 X X 354 319 29,0 6,5 82,0 9,3 23,0 4,9 7,5 5,5 5,2 30 1,00 Y75/290 10000 22,0 270
644 470 f 68 X X 473 426 33,2 7,5 70,0 7,9 21,0 6,8 8,5 6,5 5,6 30 0,60 Y94/290 8900 19,6 280
644 470 f 136 X X 475 428 33,0 7,4 70,0 7,9 23,0 6,5 8,5 6,5 6,6 50 0,55 Y94/290 8900 19,6 280
Under development
682 235 f 68 X X 242 218 20,9 4,7 84,5 10 23,0 - 7,0 5,0  - 30 1,00 Y75/290 10000 22,0 270
682 470 f 272 X X 476 428 35 7,9 73,5 8 24,0 5,5 6,4 4,5  - 25 1,00 Y75/290 10000 22,0 270





Packaging

Packing ID Pallet Yarn Type / support
LxWxH No. of cylinders Gross weight (kg)
PT1-01 1200x800x1050 33 360 T644 - Y94/290
S11-02 1200x800x1030 33 370 T682 - Y75/290

Note: Non-standard packaging is subject to special agreement.

Yarns for Ropes & Nets

High and Super High Tenacity, Multifilament Polyamide 6 (White & Spun-dyed) Yarns for the Specialty & Industrial Ropes and Nets Markets:

- Climbing & Playground Ropes

- Paper Carrier Ropes

- Fish Netting

- Fish Farming Nets

- Sport & Safety Nets

Yarns for airbags & weaving applications

High and Super High Tenacity, Multifilament Polyamide 6 (White & Spun-dyed) and 6.6 Yarns for Airbag and Weaving Markets:
- Airbag
- Broad Wovens
- Narrow Wovens
- Sewing Threads
- Air Jet Textured Applications

Yarns for tyres & MRG

High and Super High Tenacity, Multifilament Polyamide 6 and 6.6 Yarns for the Tyre and Mechanical Rubber Goods Markets:
- Passenger Car Tyres
- Off-Road Tyres
- Aircraft Tyres
- Conveyor Belts
- Airsprings
- Hoses

Special polymers

Polyamide 6.10, 6.12 (various viscosities) and PA6.6 Post-Condensation for Demanding Monofilament and Other Applications:
- Monofilaments
- Engineering Plastics
- Filtrations
- Abrasives

Twisted & Air-Jet Textured Yarns

Twisted and Air-Jet Texturing using Polyamide or your own yarn (PES, Acetate, Viscose, etc.) for Industrial Applications:

- Ropes and Nets Pre-Twisted Yarns

- Chafer for Tyres and Textile Applications

- Fancy Yarns
